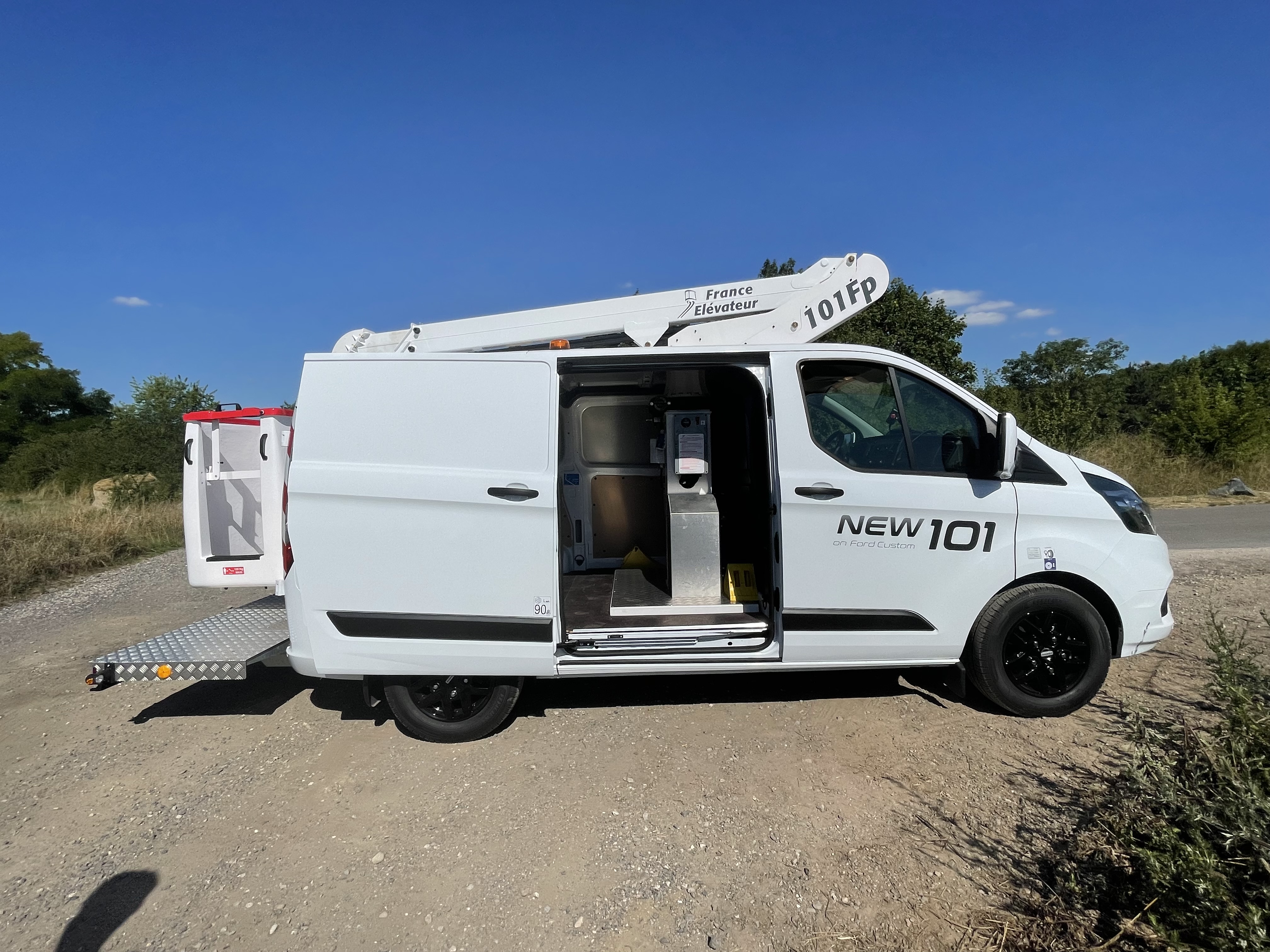

The new France Elévateur 101 FP particularly meets the requirements of telecommunications companies for use in urban environments. However, it is also suitable for many other industries that require an extremely compact working platform.
With an overall length of just 5.87 metres on a Renault-Trafic chassis, the 101 FP is as manageable as a large passenger car even in very confined conditions. Its low overall weight of 3,400 kg and low height of 2.60 metres mean it can also be used in areas that are inaccessible to other truck-mounted working platforms.
Quick deployment without outriggers

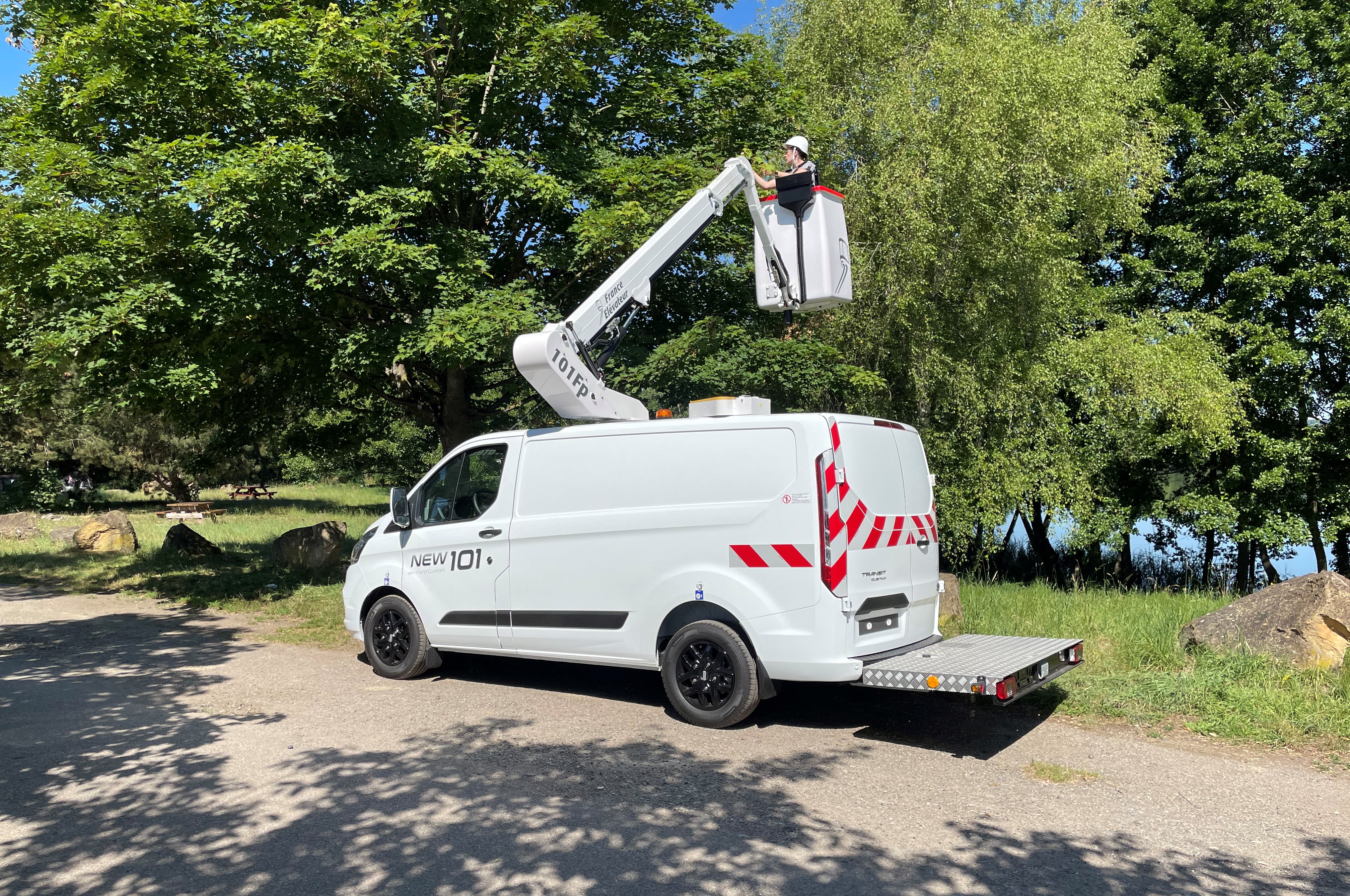

The France Elévateur 101 FP does not require any outrig[1]gers and reaches a working height of 10.10 metres and a lateral outreach of 6.20 metres. The workman basket can carry a maximum of 120 kg and can be rotated by 2 x 60°. Due to the high maximum permissible inclinations of 15 % in longitudinal and 5 % in transverse direction, the working platform can also be used on slopes or inclined roadways without any problems.
Optional equipment for the telecommunications industry
The 101 FP has been specially designed for the telecommunications industry to meet the need for an extremely compact machine for urban environments. Special telecom accessories are also available, such as a 750 kg towing hook for pulling fibre optic cables through the conduits in the floor.
Light weight and high payload
The 101 FP is currently available on a Renault Trafic or Ford Transit custom chassis. With a gross vehicle weight of 3,400 kg, it is one of the lightest truck-mounted working platforms on the market. It can therefore reach work sites for which other vehicles are too heavy. Despite the low total weight, the 101 FP has a payload of 895 kg.
Compact dimensions almost like a car

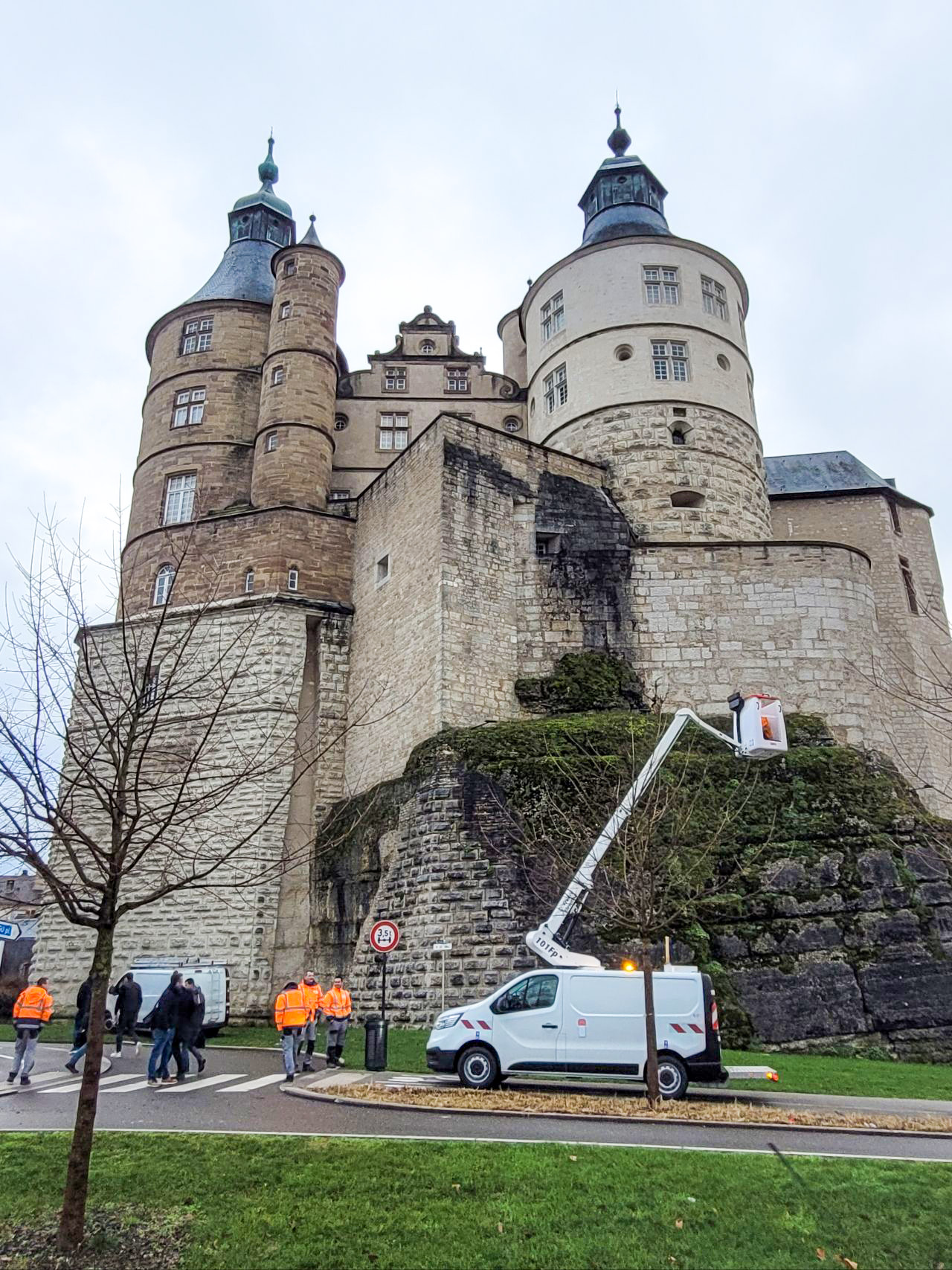

With an overall length of just 5.87 metres and a height of 2.6 metres, the 101 FP is particularly suitable for work in urban environments, in narrow alleys or behind low gateways.
Since June 2022, France Elévateur has been part of the TIME Manufacturing Company, as have RUTHMANN, VERSALIFT and MOVEX. This guarantees a dense Europe-wide service and sales network and ensures the successful and problem-free use of our working platforms.
